5 ml (Sealed Bottom)-Quartz Low Form Beaker
1/9

High Purity Quartz Glass Beakers – Extreme Temperature & Chemical Resistance

$2.40

Features a monolithic, one-piece construction, pressure and heat resistant up to 1200°C

Fabricated by welding a polished quartz plate for a flat base with superior stability

Size

Contact us for a shipping quote

Whatsapp

Quartz glass Beakers

High Optical Transmission, Excellent Transmittance, High Clarity, High Light Transmission.

High Temperature Resistance, Excellent Thermal Stability, Heat Resistant up to 1200°C.

Wide Range of Sizes, Full Specifications Available, Various Sizes & Specs, Comprehensive Rang

Acid & Alkali Resistant, High Chemical Resistance, Excellent Corrosion Resistance.

Product size

Product parameters

Product Name Fused Quartz Beaker
Material High-Purity Fused Silica (Quartz Glass)
Key Features Durable, thick-walled, and highly transparent. Features excellent thermal stability and high optical transmission.
Applications Ideal for heating, mixing, and storing liquids in chemical experiments. Its superior heat resistance and chemical inertness ensure reliable performance under demanding conditions.

Quartz Performance Table

Mechanical Properties Typical Value Thermal Properties Typical Value Electrical Properties Typical Value
Density 2.2 g/cm³ Softening Point 1780°C Electrical Resistivity 7 x 107 Ω·cm
Compressive Strength 1100 MPa Annealing Point 1250°C Dielectric Strength 250 - 400 kV/cm
Flexural Strength 67 MPa Specific Heat (20-350°C) 670 J/kg·°C Dielectric Constant 3.7 - 3.9
Tensile Strength 48 MPa Thermal Conductivity (20°C) 1.4 W/m·°C Dielectric Absorption Coefficient <1 x 10-4
Poisson's Ratio 0.14 - 0.17 Refractive Index 1.4585 Dielectric Loss Tangent <1 x 10-4
Young's Modulus 72000 MPa Coefficient of Thermal Expansion 5.5 x 10-7 /°C
Shear Modulus 31000 kPa Working Temperature 1750 - 2050°C
Mohs Hardness 5.5 - 6.5 Short-Term Service Temperature 1300°C
Strain Point 1280°C Continuous Service Temperature 1100°C

Full specification

Capacity 5-5000ml, in stock for fast dispatch, supports customization

Heat resistance

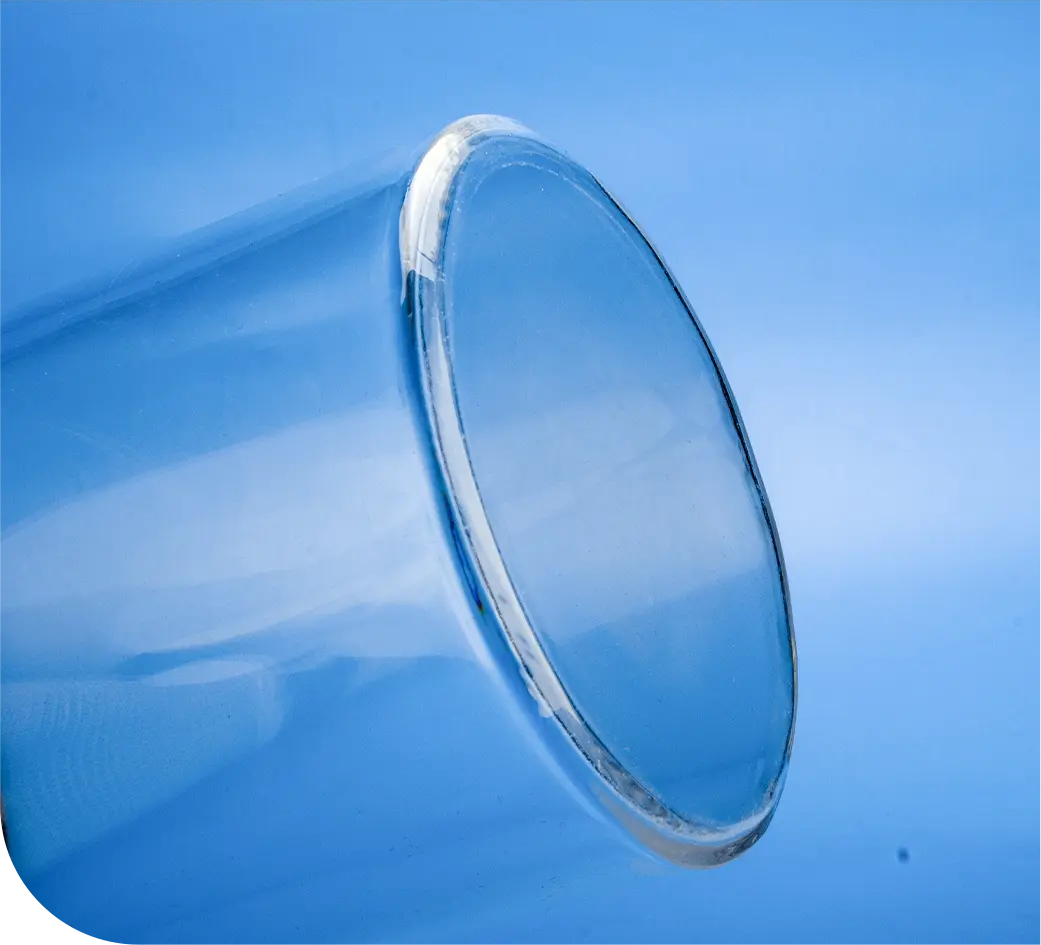

Ultra-Flat Base for Maximum Stability

High Transmittance

High optical clarity and clear, easy-to-read graduations for convenient observation and measurement
