Length 100mm x Width 16mm x Height 8mm -Quartz Boat for Sulfur Analyzer
1/6
  • Length 100mm x Width 16mm x Height 8mm -Quartz Boat for Sulfur Analyzer

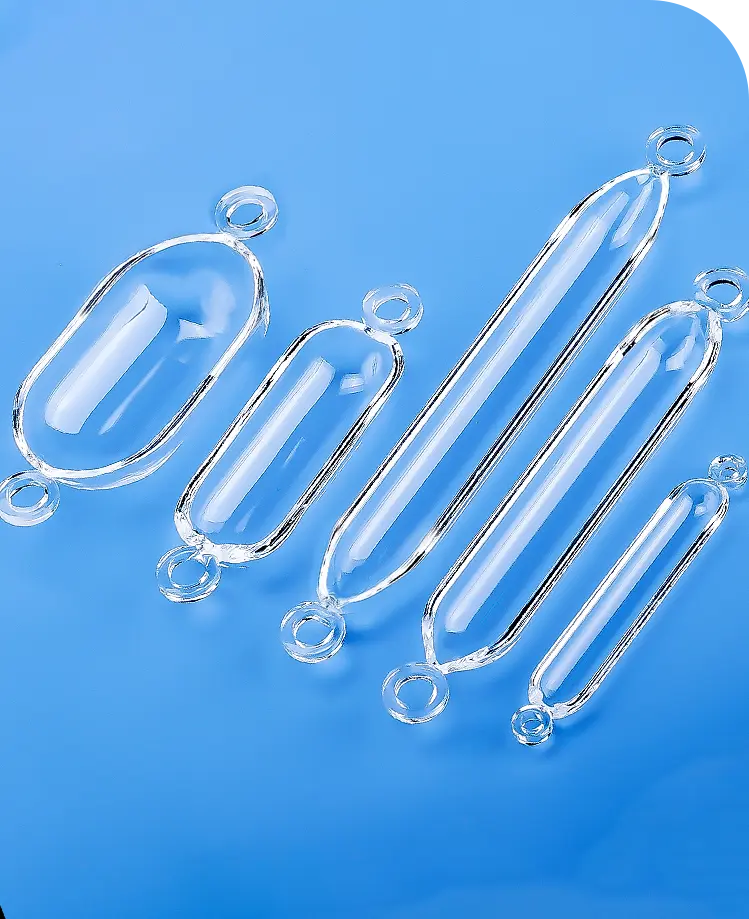

  • A collection of five clear quartz boats with dual handles, varying in size, arranged on a blue background.
  • High purity quartz boats for tube furnaces, showcasing their single ear design and acid-resistant properties for 1200°C applications

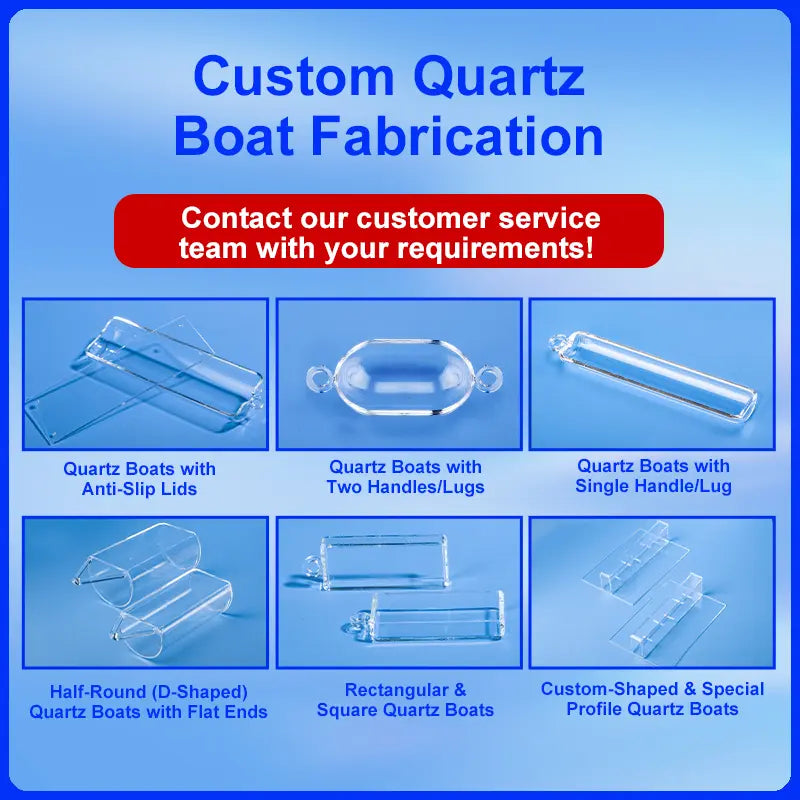

  • A collage showing various custom quartz boat designs, including those with anti-slip lids, two handles, single handles, half-round shapes, rectangular, square, and custom profiles.

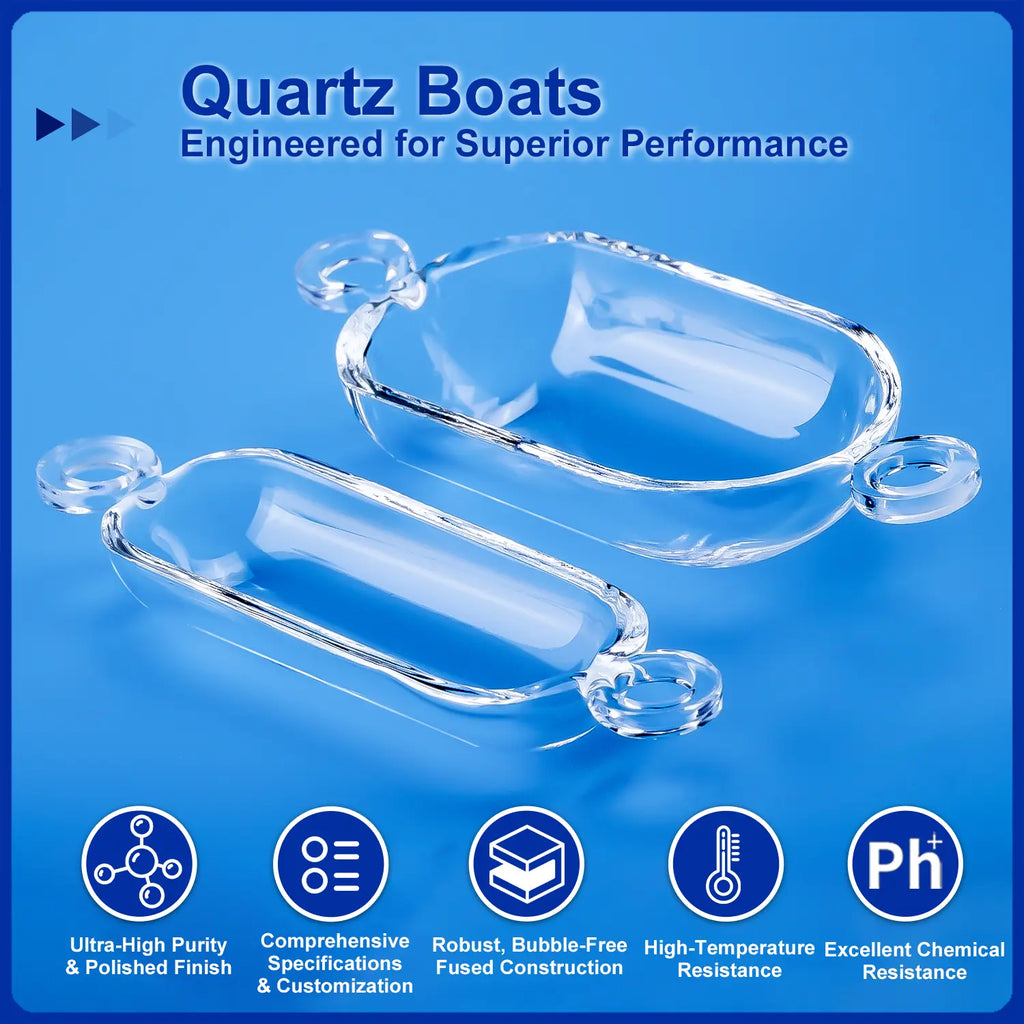

  • Two quartz boats with dual handles, highlighting features like ultra-high purity, comprehensive specifications, robust construction, high-temperature resistance, and excellent chemical resistance.

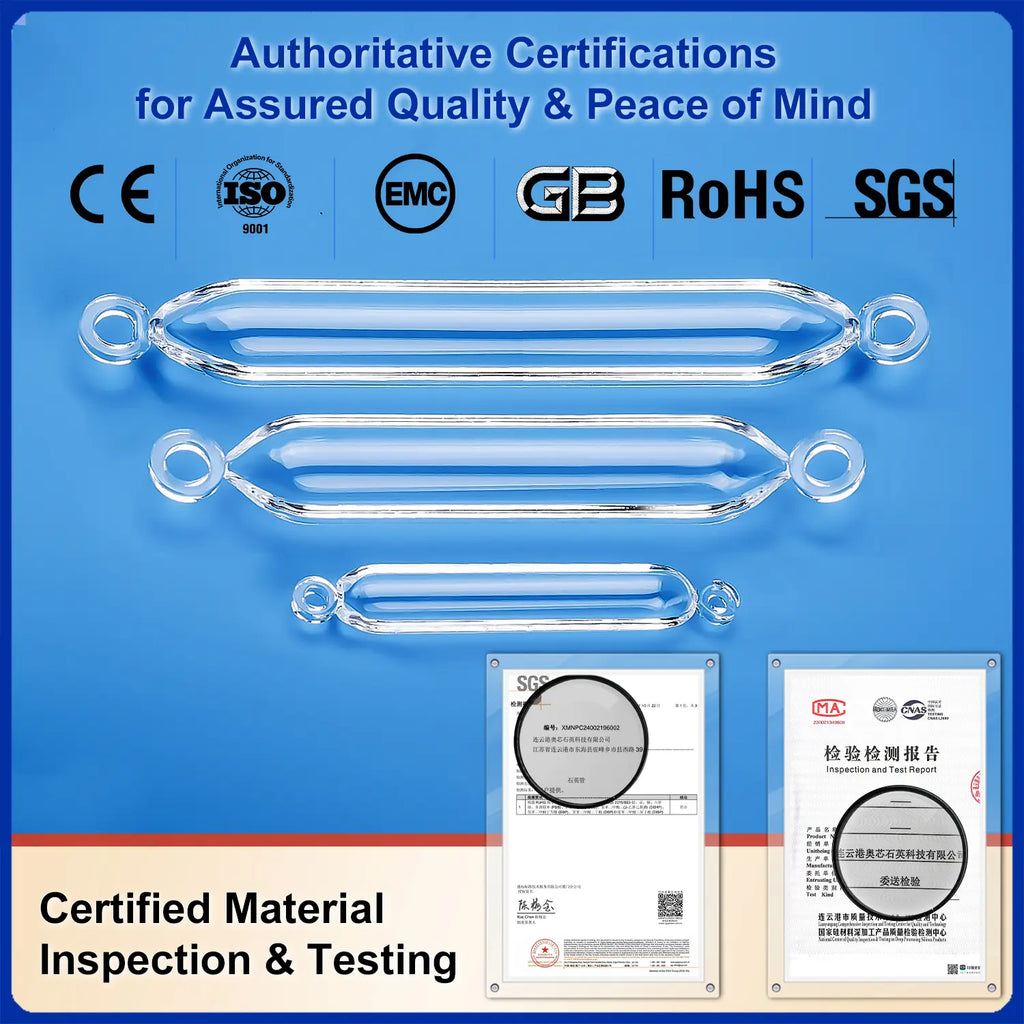

  • Three quartz boats displayed alongside authoritative certifications (CE, ISO 9001, EMC, GB, RoHS, SGS) for assured quality, emphasizing material inspection and testing.
High Purity Quartz Boat with Dual Handles for Elemental Analysis

High Purity Quartz Boat with Dual Handles for Elemental Analysis

$3.00

Factory-Direct Sales. Custom dimensions (Length x Width x Height) and optional lids available

Please contact customer service for inquiries

Size(mm)

Contact us for a shipping quote

Whatsapp

Quartz Boats with Two Handles

High Optical Transmission, Excellent Transmittance, High Clarity, High Light Transmission.

High Temperature Resistance, Excellent Thermal Stability, Heat Resistant up to 1200°C.

Wide Range of Sizes, Full Specifications Available, Various Sizes & Specs, Comprehensive Rang

Acid & Alkali Resistant, High Chemical Resistance, Excellent Corrosion Resistance.

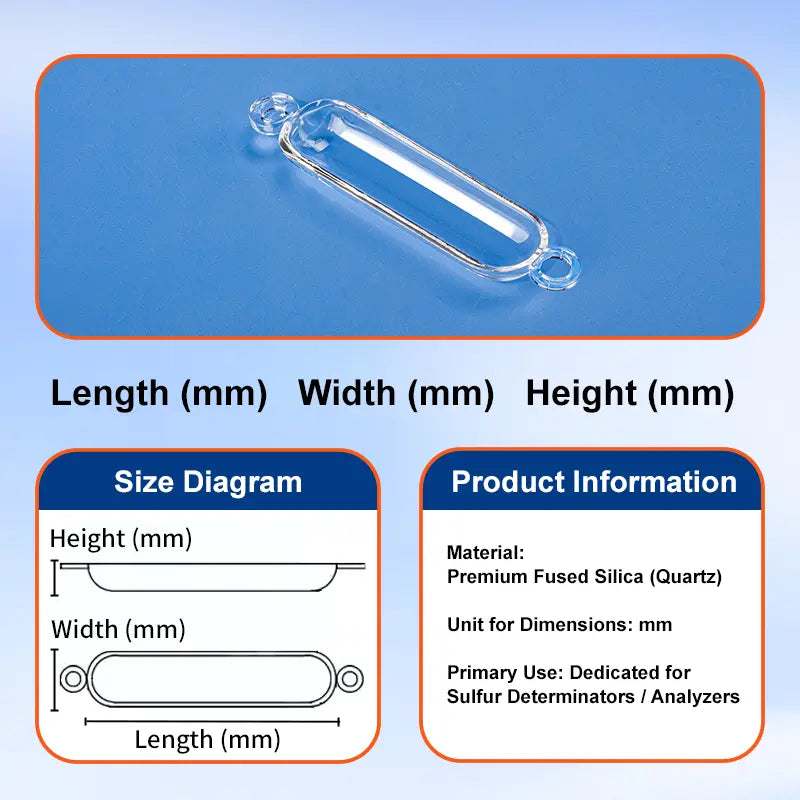

Product size

Product parameters

Product Name Quartz Boat with Two Handles (Dual Lugs)
Material High-Purity Quartz Glass
Key Features Robust, clear, and durable thick-walled construction; offers excellent high-temperature resistance and high light transmittance
Applications A commonly used tool for high-temperature experiments and production processes, primarily in fields such as semiconductor manufacturing, materials science, chemical research, and optical applications

Quartz Performance Table

Mechanical Properties Typical Value Thermal Properties Typical Value Electrical Properties Typical Value
Density 2.2 g/cm³ Softening Point 1780°C Electrical Resistivity 7 x 107 Ω·cm
Compressive Strength 1100 MPa Annealing Point 1250°C Dielectric Strength 250 - 400 kV/cm
Flexural Strength 67 MPa Specific Heat (20-350°C) 670 J/kg·°C Dielectric Constant 3.7 - 3.9
Tensile Strength 48 MPa Thermal Conductivity (20°C) 1.4 W/m·°C Dielectric Absorption Coefficient <1 x 10-4
Poisson's Ratio 0.14 - 0.17 Refractive Index 1.4585 Dielectric Loss Tangent <1 x 10-4
Young's Modulus 72000 MPa Coefficient of Thermal Expansion 5.5 x 10-7 /°C
Shear Modulus 31000 kPa Working Temperature 1750 - 2050°C
Mohs Hardness 5.5 - 6.5 Short-Term Service Temperature 1300°C
Strain Point 1280°C Continuous Service Temperature 1100°C

Full specification

Lengths: 30mm - 200mm
Customization Supported

Heat resistance

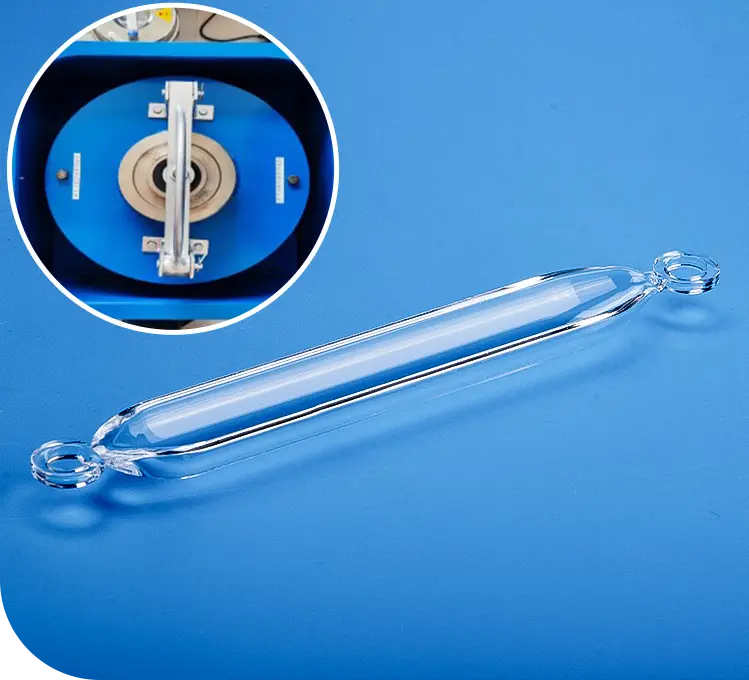

Quartz Boat (120mm / 100mm) - Specialized Accessory for Coal Quality Sulfur Analyzers

High Transmittance

Customization Supported | Anti-Slip Lids
Supports custom orders for single/dual design flat-bottom quartz boats
